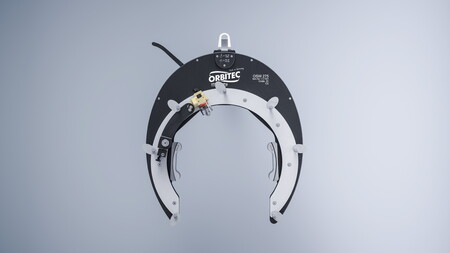

Orbitec offers orbital welding heads in a tube size range of OD 8 – 273 mm. The welding heads are supplied with an integrated start/stop button on the handle, the top jaws and the torch bracket with mechanical distance control. The heads are optionally also available with an angular gearbox
Open Frame Weld Heads

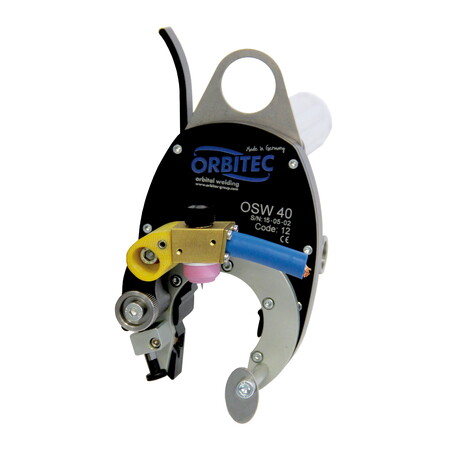

OSW 40
Tube size range: OD 8 – 40 mm / 0,394″ – 1,575″
Weight: 2 kg
Item number: 1.3.1001

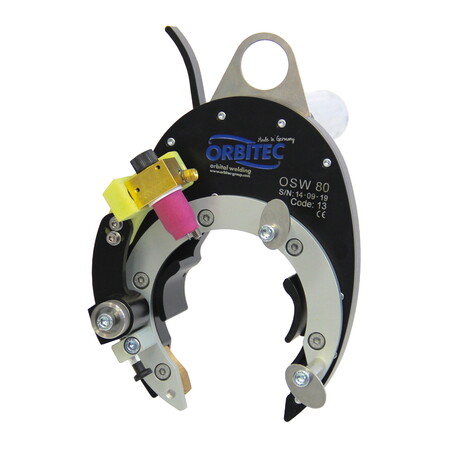

OSW 80
Tube size range: OD 10 – 76,2 mm / 0,394″ – 3,000″
Weight: 3 kg
Item number: 1.3.1101

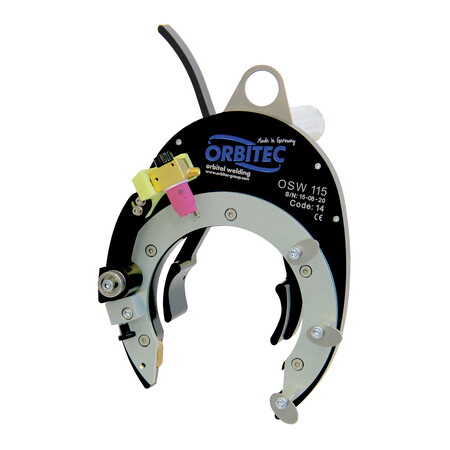

OSW 115
Tube size range: OD 20 – 114,3 mm / 0,787″ – 4,500″
Weight: 4,5 kg
Item number: 1.3.1201

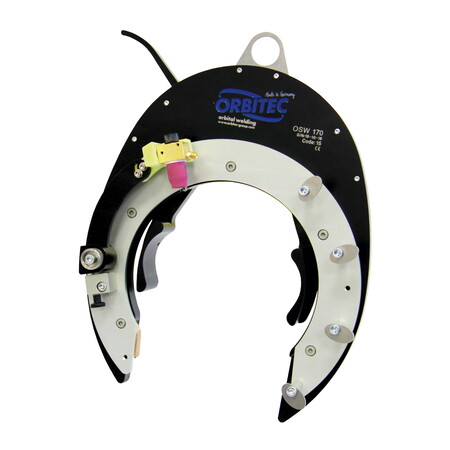

OSW 170
Tube size range: OD 40 – 168,3 mm / 1,575″ – 6,626″
Weight: 6,5 kg
Item number: 1.3.1301

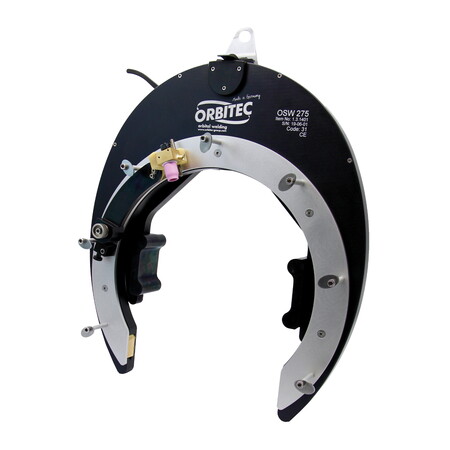

OSW 275
Tube size range: OD 88,9 – 273 mm / 3,500″ – 610,748″
Weight: 16 kg
Item number: 1.3.1401
Accessories and extensions

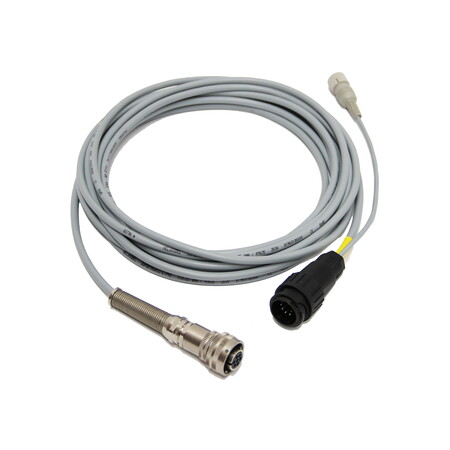

Interconnection cable with wire outlet, bayonet, 8 m
Item number: 1.3.1629

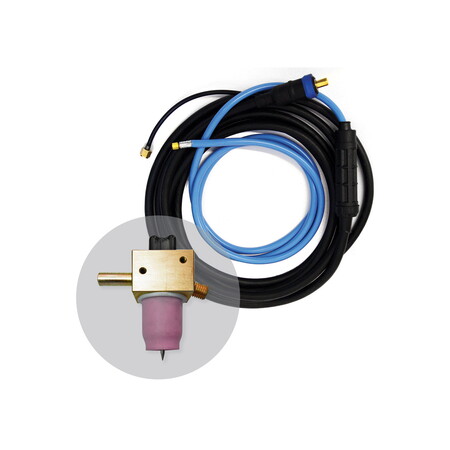

TIG torch “Mini” with hose package, bayonet, 8.5 m, gas-cooled
with hose package, 8.5 m, gas-cooled, equipped with torch consumables and tungsten electrode Ø 1.6 mm
Item number: 1.3.1602

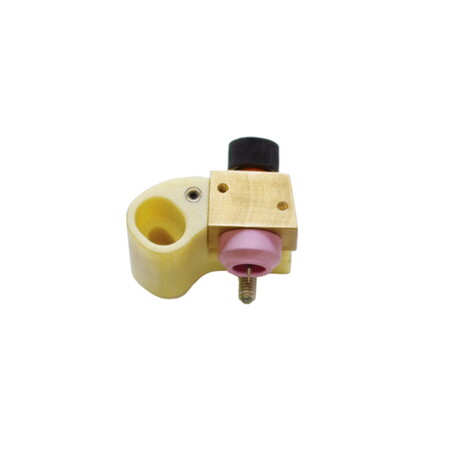

OSW torch bracket “Mini” for OSW 40
Item number: 1.3.1617
OSW torch bracket “Mini”, can be screwed in at 45°, for OSW 40
Item number: 1.3.1609

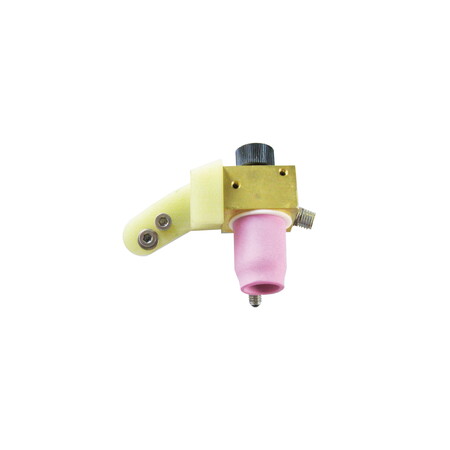

Multi-position torch bracket for OSW 80 – 170
Item number: 1.3.1635

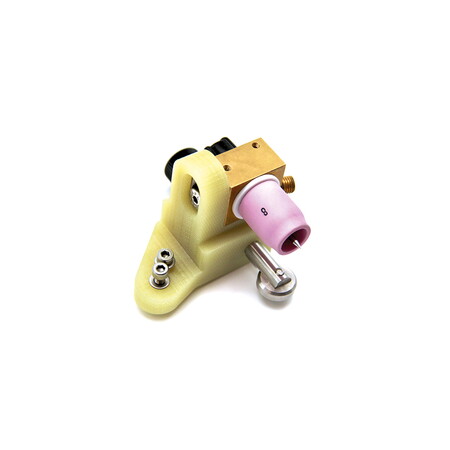

Torch bracket with roll scanning for OSW 80 – 275
Item number: 1.3.1640

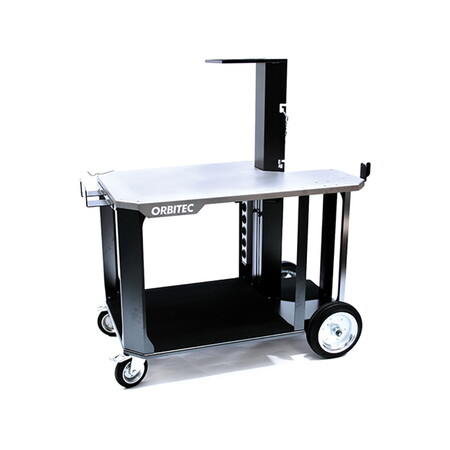

Mobile orbital workstation
- Electrical supply integrated for auxiliary equipment: 5 x 230 V, 10 A (not suitable for the power source!)
- 2 steering castors, 160 mm diameter, with total lock
- 2 fixed castors, 280 mm diameter
- Extending cylinder holder with fastening chain above the centre of gravity of the cylinder
- High-quality powder coating
- Sturdy stainless steel worktop, folded edge
- Shelf for oxygen analyser
- Mount for bench vice with clamping prism
- Holder for open welding head
- Holder for manual hose package
- Space for inverter, cooling unit, etc.
Dimensions without holders installed:
1110 x 710 x 850 mm (L x W x H)
Weight: unloaded, approx. 70 kg
Mobile workstation
Item number: 1.2.0128
Item number: 1.2.0128
Mobile workstation without cylinder holder
Item number: 1.2.0146
Item number: 1.2.0146
GLASS GAS NOZZLE
OSW 80-275, TURN
Item number: 1.3.1048

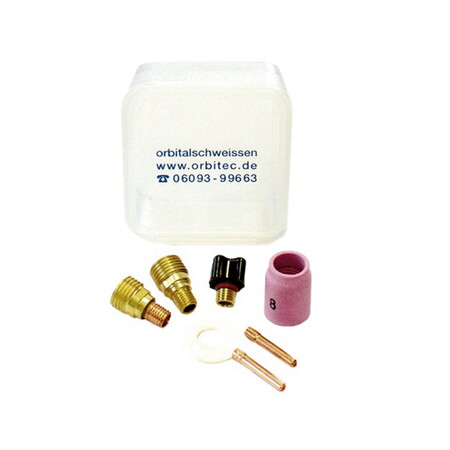

OSW torch consumables box
Scope of supply:
- 1 torch cap
- 1 collet
- 1 Teflon insulator
- 1 gas lens

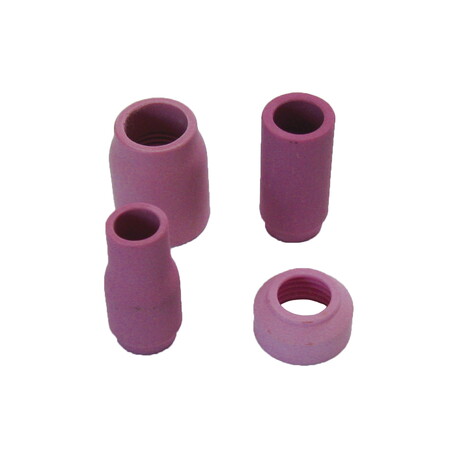

- 1 ceramic nozzle
Consumables box with torch original equipment for OSW 40, 1.6 mm diameter
Item number: 1.3.1623
Item number: 1.3.1623
Consumables box with torch original equipment for OSW 40, 2.4 mm diameter
Item number: 1.3.1624
Item number: 1.3.1624
Consumables box with torch original equipment for OSW 80 – 275, 1.6 mm diameter
Item number: 1.3.1621
Item number: 1.3.1621
Consumables box with torch original equipment for OSW 80 – 275, 2.4 mm diameter
Item number: 1.3.1622
Item number: 1.3.1622

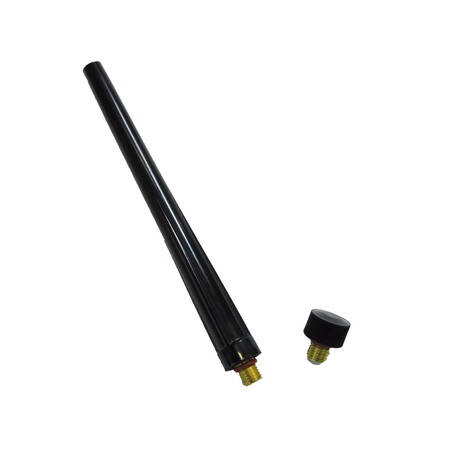

Torch caps
OSW 40 torch cap for water-cooled torch
Item number: 1.0.1615S
Item number: 1.0.1615S
OSW torch cap
Item number: 1.3.1147
Item number: 1.3.1147
TURN torch cap
Item number: 1.2.1817
Item number: 1.2.1817
Torch cap, manual torch
Item number: 1.3.1910
Item number: 1.3.1910

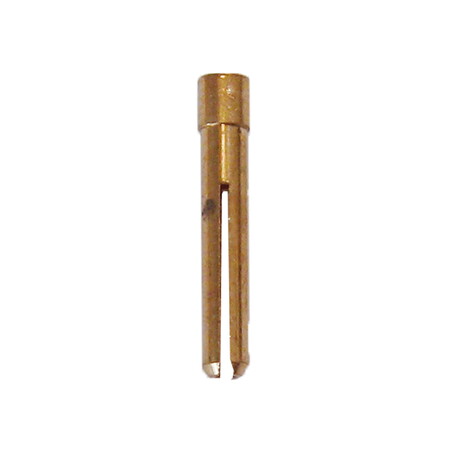

OSW 40 CLAMP SLEEVE for torch, gas-cooled, Ø 1.6 mm, length 16 mm
Item number: 1.0.1616
Item number: 1.0.1616
OSW 40 CLAMP SLEEVE for torch, gas-cooled, Ø 2.4 mm, length 16 mm
Item number: 1.0.1623
Item number: 1.0.1623
OSW 40 CLAMP SLEEVE for torch, water-cooled, Ø 1.6 mm, length 17 mm
Item number: 1.0.1640
Item number: 1.0.1640
OSW 40 CLAMP SLEEVE for torch, water-cooled, Ø 2.4 mm, length 17 mm
Item number: 1.0.1641
Item number: 1.0.1641
OSW 80 – 275CLAMP SLEEVE, manual torch, Ø 1.6 mm
Item number: 1.0.1626
Item number: 1.0.1626
OSW 80 – 275 CLAMP SLEEVE, manual torch Ø 2.4 mm
Item number: 1.0.1627
Item number: 1.0.1627
CLAMP SLEEVE, TURN, Ø 1.6 mm
Item number: 1.0.1818
Item number: 1.0.1818
CLAMP SLEEVE, TURN, Ø 2.4 mm
Item number: 1.2.1819
Item number: 1.2.1819
CLAMP SLEEVE, RBK 60 S, Ø 2.4 mm
Item number: 1.3.3076
Item number: 1.3.3076
CLAMP SLEEVE, RBK 60 S, Ø 3.2 mm
Item number: 1.3.3089
Item number: 1.3.3089
TEFLON INSULATORS
Teflon Insulator OSW 40
Item number: 1.0.1618
Item number: 1.0.1618
Teflon Insulator OSW 80 – 275
Item number: 1.0.1629
Item number: 1.0.1629
Teflon Insulator for Glass Gas Nozzle
Item number: 1.0.1051
Item number: 1.0.1051
Teflon Insulator TURN, Hand Torch
Item number: 1.2.1820
Item number: 1.2.1820
Teflon Insulator RBK 60 S
Item number: 1.3.3078
Item number: 1.3.3078

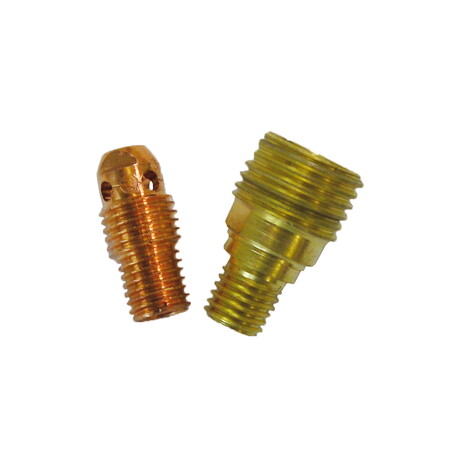

Gas lens OSW 40 Ø 1.6 mm
Item number: 1.0.1620
Item number: 1.0.1620
Gas lens OSW 40 Ø 2.4 mm
Item number: 1.0.1629
Item number: 1.0.1629
Gas lens OSW 80-275, TURN, hand torch Ø 1.6 mm
Item number: 1.0.1631
Item number: 1.0.1631
Gas lens OSW 80-275, TURN, hand torch Ø 2.4 mm
Item number: 1.0.1632
Item number: 1.0.1632
Gas lens for glass gas nozzle OSW 80-275, TURN, Ø 2.4 mm
Item number: 1.3.1049
Item number: 1.3.1049
Gas lens RBK 60 S Ø 2.4 mm
Item number: 1.3.3079
Item number: 1.3.3079
Gas lens RBK 60 S Ø 3.2 mm
Item number: 1.3.3096
Item number: 1.3.3096
GAS LENS HOLDER
for glass gas nozzle
Item number: 1.0.1050
Other gas cups available on request.
OSW 40 gas cup
Item number: 1.3.1046
Item number: 1.3.1046
OSW 80 – 275 gas cup, TURN, size 8
Item number: 1.3.1146
Item number: 1.3.1146
RBK 60 S gas cup, size 7
Item number: 1.3.3077
Item number: 1.3.3077
Gas cup, manual torch, size 6
Item number: 1.3.1911
Item number: 1.3.1911
