Tube-To-Tube-Sheet Weld Heads

Tube-to-tubesheet welding heads make it possible to achieve consistently high-quality, reproducible welding of tubes to tubesheets. The use of filler wire and torch distance control via arc voltage control (AVC) is optional. The welding head is fasted in the tube in the tubesheet to generate a precise weld along the circumference of the tube. The tubes to be welded can be flush with the tubesheet, offset or protruding. The tube-to-tubesheet welding heads can be integrated into automated welding systems.

Learn more about orbital tube welding in our process explanations.

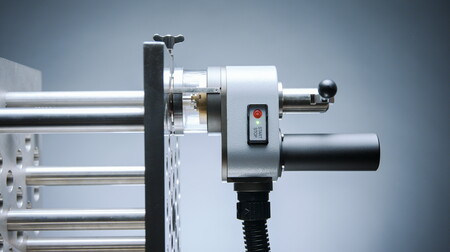

RBK 38 S

Open product

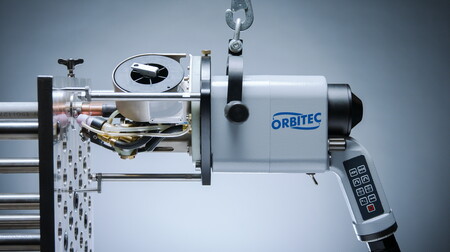

RBK 60 S

Open product

Matching products

Our new generation of 2 gas-cooled, compact welding heads, technically optimized and in a new design, for smaller nominal widths and with clamping levers. The heads have been designed with a narrow handle for particularly confined spaces.
