Wire feeders Orbifeed

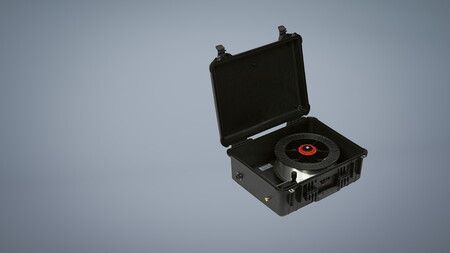

Orbifeed 5 wire feed unit, for 5-kg spools
Package includes:
- Water-resistant and dust-proof Peli case
- Four-roller drive mechanism
- Delivery hose with inlet and outlet nozzles
- Spool adapter
- Wire feed console on OSW / TURN
- Wire feed unit / controller connection cable
Technical Data: Orbifeed 5
- Motor voltage and power: 24 VDC, 6 W
- Weight: approx. 7 kg
- Dimensions (L x W x H): 406 x 330 x 174 mm
- Wire spools: Standard spools 5 kg
- Wire diameter: 0,8 / 1,0 mm
Item number: 1.3.1701

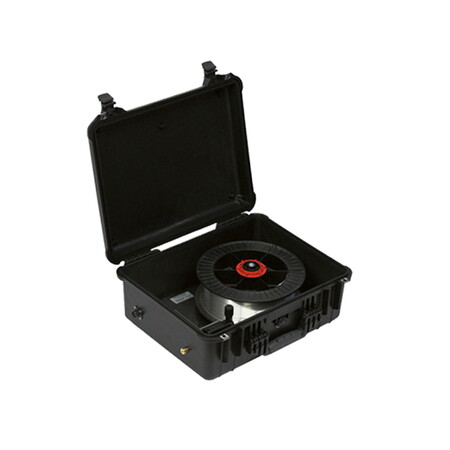

Orbifeed 5 wire feed unit, for 15-kg spools
Package includes:
- Water-resistant and dust-proof Peli case
- Four-roller drive mechanism
- Delivery hose with inlet and outlet nozzles
- Spool adapter
- Wire feed console on OSW / TURN
- Wire feed unit / controller connection cable
Technical Data: Orbifeed 15
- Motor voltage and power: 24 VDC, 6 W
- Weight: approx. 8 kg
- Dimensions (L x W x H): 525 x 436 x 217 mm
- Wire spools: Standard-Spulen 5 and 15 kg
- Wire diameter: 0,8 / 1,0 mm
Item number: 1.3.1702
Accessories and extensions
Spare feed hose for Orbifeed, complete, 4.5 m
Item number: 1.3.1706

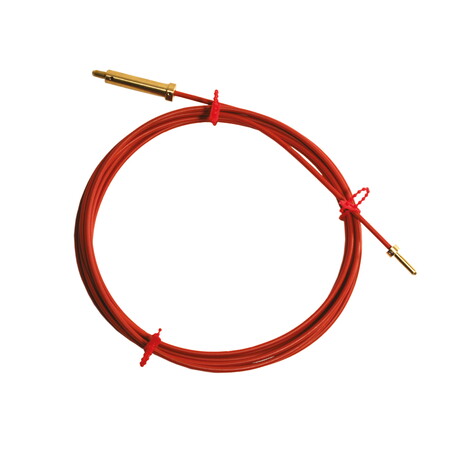

Spare wire feed spiral, red, 4.5 m
Item number: 1.3.1719

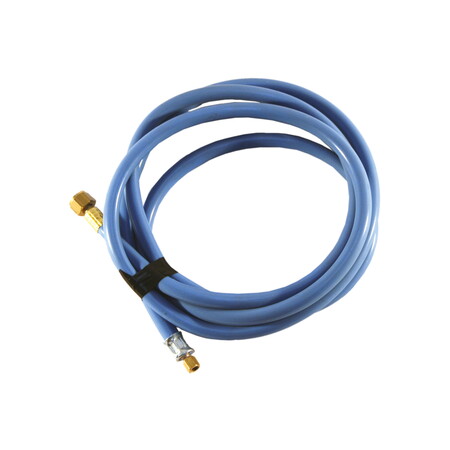

Spare 2.5-m silicone hose package, gas-cooled, for OSW 40
gas-cooled, for OSW 40 (Special tooling required)
Item number: 1.1.1615

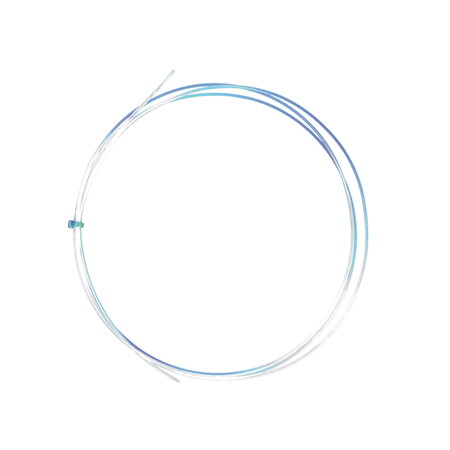

Spare wire core, Teflon, for Orbifeed, 4.7 m
Item number: 1.3.1712

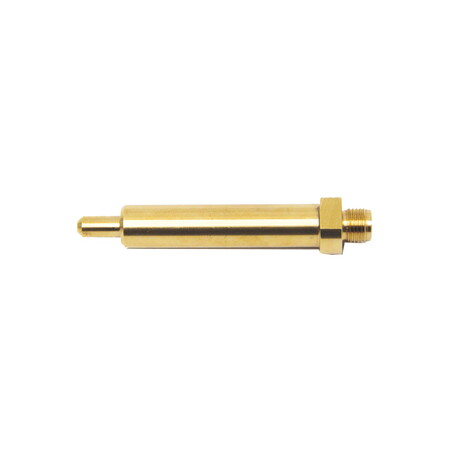

Spare wire inlet nozzle
Item number: 1.3.1704

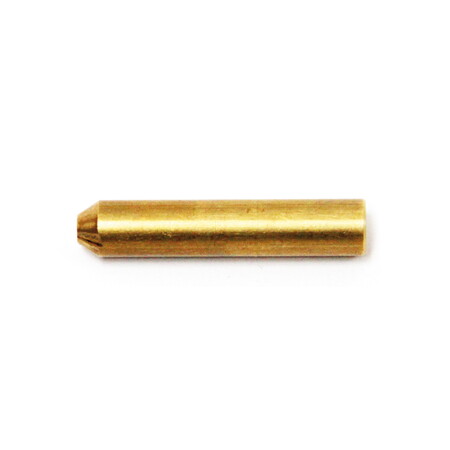

Spare wire outlet nozzle (wire diameter 0.8 mm)
Item number: 1.3.1720
Spare wire outlet nozzle (wire diameter 1.0 mm)
Item number: 1.3.1705

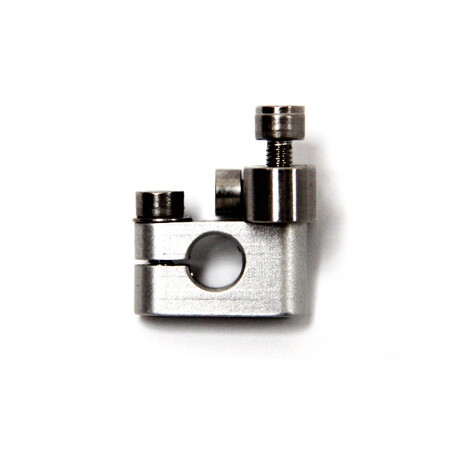

OSW 40 spare wire console, aluminium
Item number: 1.0.1639
OSW 80 – 275 spare wire console, aluminium
Item number: 1.0.1634

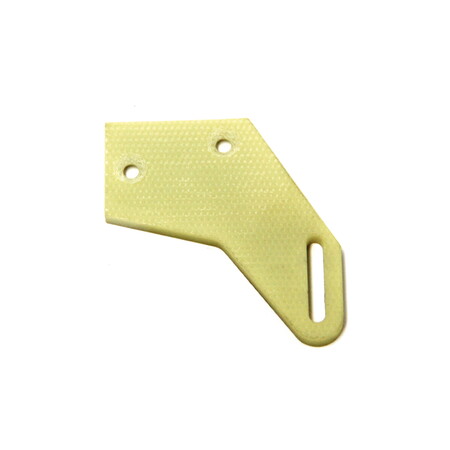

OSW 40 spare wire console, GRP
Item number: 1.0.1619
OSW 80 – 275 spare wire console, GRP, “internal”
Item number: 1.0.1638
OSW 80 – 275 spare wire console, GRP, “standard”
Item number: 1.0.1630
