Turntable System
The Turn 230 S turntable features a quick change system that enables efficient processing of components with different tube diameters. The continuously swivelling arm and the hollow shaft, through which the inside of the component can be purged via the central axis, enable processing at the highest level. Its flexible adjustment options make the turntable the right solution for any component.

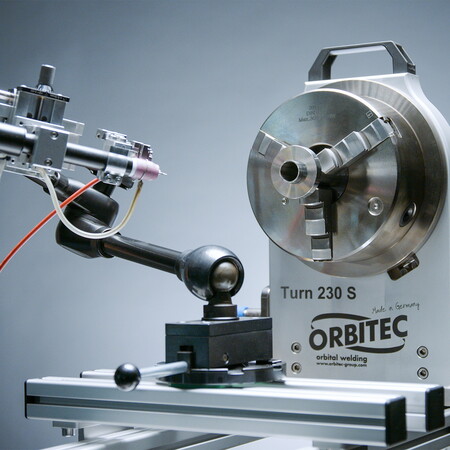

Turn 230 S turntable
Turn table, especially suitable for orbital components with higher quantities and can be connected to all Orbitec controllers.
Scope of application:
- Tube size range: OD 10 – 230 mm | 0.393 – 9.055"
- Max. load in horizontal position: 50 kg
Technical Data:
- Chuck: Three-jaw chuck with axis adjustment
- Swivel range: 0 – 90° stepless
- Power transmission: max. 300 A
- Weight: 88 kg
- Dimensions (L x W x H): 1.020 x 360 x 750 mm
Package includes:
- Turn table
- Three-jaw chuck
- Interchangeable jaws
- Chuck key
- Robust articulated arm with central mechanical clamping
- Ground cable
- Interconnection cable with wire and AVC outlet
Special versions available on request:
- Pneumatic torch adjustment
- Pneumatic centring and clamping
- Pneumatic tailstock
- Special diameters up to 1.000 mm
- Special lengths and complete workstation equipment available on request
- Special torch consumables
Item number: 1.2.1858
Accessories and extensions
TURN 230 S machine torch with hose package 4 m
gas-cooled, equipped with torch consumables and tungsten electrode Ø 2.4 mm
ED: AC: 105 A, DC: 220 A, 60% (10 min.)
Special lengths and versions with a higher ED available on request.
Item number: 1.2.1814
TURN 230 S machine torch with hose package 4 m
gas-cooled, equipped with torch consumables and tungsten electrode Ø 2.4 mm
ED: AC: 105 A, DC:150 A, 60% (10 min.)
Special lengths and versions with a higher ED available on request.
Item number: 1.2.1814
Manual adjustment unit for Turn 230 S using cross support
Slide width 50 mm, torch travel 50 mm, lateral adjustment 30 mm incl. torch clamp OD 20 mm incl. mounting flange
(Special torch clamp OD 30 mm available on request)
Item number: 1.2.1861
AVC unit assembly for Turn 230 S
incl. AVC motor with limit switching and 8 m connection cable, slide width 50 mm, torch travel 50 mm, lateral adjustment 30 mm incl. torch clamp OD 20 mm incl. mounting flange
(Special torch clamp OD 30 mm available on request)
Item number: 1.2.1859
Wire console for Turn 230 S
incl. wire outlet nozzle and three nozzle tips for 0.8 / 1.0 / 1.2 mm
Item number: 1.2.1852
Comfort wire console for Turn 230 S
(3D adjustable via linear unit)
Item number: 1.2.1869
Tube support for Turn 230 S
Item number: 1.2.1860
Torch caps
OSW 40 torch cap for water-cooled torch
Item number: 1.0.1615S
Item number: 1.0.1615S
OSW torch cap
Item number: 1.3.1147
Item number: 1.3.1147
TURN torch cap
Item number: 1.2.1817
Item number: 1.2.1817
Torch cap, manual torch
Item number: 1.3.1910
Item number: 1.3.1910
OSW 40 CLAMP SLEEVE for torch, gas-cooled, Ø 1.6 mm, length 16 mm
Item number: 1.0.1616
Item number: 1.0.1616
OSW 40 CLAMP SLEEVE for torch, gas-cooled, Ø 2.4 mm, length 16 mm
Item number: 1.0.1623
Item number: 1.0.1623
OSW 40 CLAMP SLEEVE for torch, water-cooled, Ø 1.6 mm, length 17 mm
Item number: 1.0.1640
Item number: 1.0.1640
OSW 40 CLAMP SLEEVE for torch, water-cooled, Ø 2.4 mm, length 17 mm
Item number: 1.0.1641
Item number: 1.0.1641
OSW 80 – 275CLAMP SLEEVE, manual torch, Ø 1.6 mm
Item number: 1.0.1626
Item number: 1.0.1626
OSW 80 – 275 CLAMP SLEEVE, manual torch Ø 2.4 mm
Item number: 1.0.1627
Item number: 1.0.1627
CLAMP SLEEVE, TURN, Ø 1.6 mm
Item number: 1.0.1818
Item number: 1.0.1818
CLAMP SLEEVE, TURN, Ø 2.4 mm
Item number: 1.2.1819
Item number: 1.2.1819
CLAMP SLEEVE, RBK 60 S, Ø 2.4 mm
Item number: 1.3.3076
Item number: 1.3.3076
CLAMP SLEEVE, RBK 60 S, Ø 3.2 mm
Item number: 1.3.3089
Item number: 1.3.3089
TEFLON INSULATORS
Teflon Insulator OSW 40
Item number: 1.0.1618
Item number: 1.0.1618
Teflon Insulator OSW 80 – 275
Item number: 1.0.1629
Item number: 1.0.1629
Teflon Insulator for Glass Gas Nozzle
Item number: 1.0.1051
Item number: 1.0.1051
Teflon Insulator TURN, Hand Torch
Item number: 1.2.1820
Item number: 1.2.1820
Teflon Insulator RBK 60 S
Item number: 1.3.3078
Item number: 1.3.3078
Gas lens OSW 40 Ø 1.6 mm
Item number: 1.0.1620
Item number: 1.0.1620
Gas lens OSW 40 Ø 2.4 mm
Item number: 1.0.1629
Item number: 1.0.1629
Gas lens OSW 80-275, TURN, hand torch Ø 1.6 mm
Item number: 1.0.1631
Item number: 1.0.1631
Gas lens OSW 80-275, TURN, hand torch Ø 2.4 mm
Item number: 1.0.1632
Item number: 1.0.1632
Gas lens for glass gas nozzle OSW 80-275, TURN, Ø 2.4 mm
Item number: 1.3.1049
Item number: 1.3.1049
Gas lens RBK 60 S Ø 2.4 mm
Item number: 1.3.3079
Item number: 1.3.3079
Gas lens RBK 60 S Ø 3.2 mm
Item number: 1.3.3096
Item number: 1.3.3096
Other gas cups available on request.
OSW 40 gas cup
Item number: 1.3.1046
Item number: 1.3.1046
OSW 80 – 275 gas cup, TURN, size 8
Item number: 1.3.1146
Item number: 1.3.1146
RBK 60 S gas cup, size 7
Item number: 1.3.3077
Item number: 1.3.3077
Gas cup, manual torch, size 6
Item number: 1.3.1911
Item number: 1.3.1911
TURN ignition aid, 15 mm diameter, 150 mm long
Item number: 1.2.1803
Item number: 1.2.1803
RBK 60 S ignition aid, TURN, 16 mm diameter, 180 mm long
Item number: 1.3.3088
Item number: 1.3.3088
RBK 60 S ignition aid, TURN, 24 mm diameter, 160 mm long
Item number: 1.3.3073
Item number: 1.3.3073
AVC Upgrade Kit for Tigtronic Controllers AVC Card for DC Motors Upgrade Kit (Turn)
for Tigtronic controllers
Item number: 1.3.0031
