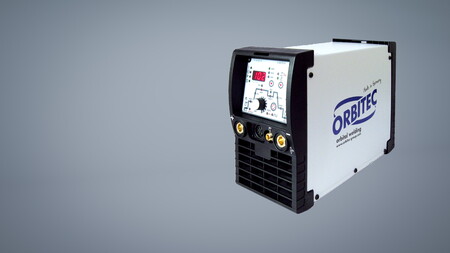

Inverter Tetrix 200
The compact and lightweight design of the Tetrix 200 inverter makes it ideal for mobile orbital welding tasks.
Inverter Tetrix 200

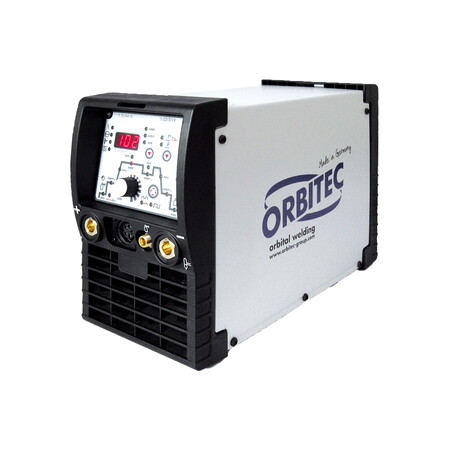

Tetrix 200 inverter
Control range 5 – 200 A / 230 V
Lightweight and compact inverter power source for TIG manual or orbital welding (automatic detection) in conjunction with all Orbitec controllers.
Optional: COOL 50 water cooling unit.
Technical Data:
- Type of current DC
- Mains voltage AC 1 x 230 V
- Mains frequency 50 / 60Hz
- Max. primary reserve power 4,4kVA
- Rec. generator output 7,5kVA
- Control range 5 A– 200 A
- Welding current
- 25% ED TIG 200 A
- 60% ED TIG 150 A
- 100% ED TIG 120 A
- Weight 8,9kg
- Dimensions (L x W x H) 475x 180x 295mm
Scope of supply:
- Inverter
- Primary cable
Item number: 1.2.0119
Tetrix 200 inverter (Autorange)
Control range 5 – 200 A / 110 / 230 V
As TETRIX 200 inverter, but recognises the 115-V AC or 230.V AC input voltage and adjusts automatically.
(Note: With 115 V AC input voltage, the maximum current is 150 A.)
Optional: COOL 50 water cooling unit.
Technical Data:
- Type of current DC
- Mains voltage AC 1 x 230 V
- Mains frequency 50 / 60Hz
- Max. primary reserve power 4,4kVA
- Rec. generator output 7,5kVA
- Control range 5 A– 200 A
- Welding current
- 25% ED TIG 200 A
- 60% ED TIG 150 A
- 100% ED TIG 120 A
- Weight 8,9kg
- Dimensions (L x W x H) 475x 180x 295mm
Scope of supply:
- Inverter
- Primary cable
Item number: 1.2.0120
