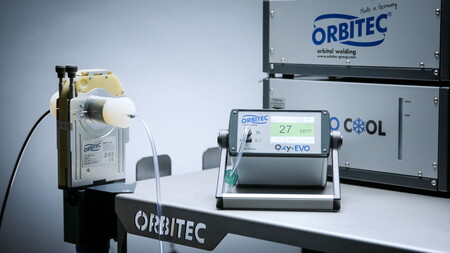

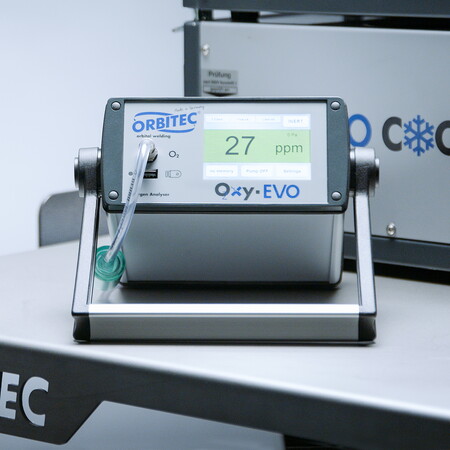

Oxy Evo oxygen analyser + PPA

• Extremely easy menu navigation
• For inert gases and gases containing H2 (max. 10%)
• Measuring cell made of zirconium oxide (maintenance-free)
• 3.5" colour touch display
• USB interface for exporting documentation
• Digital and analogue interface and Bluetooth for communication with our orbital welding controllers and other PSPS
• Activation and evaluation exclusively using the digital interface
• User-definable threshold and alarm adjustment
• Acoustic signal generator
• Display has a coloured background outside the target values
• Autorange 100 – 240 V

Package includes:

• Oxygen analyser
• Power cable
• Hose set, 3 m, incl. filter and probe
• Calibration certificate
• Transport case

Technical Data:

• Measuring range: 5 ppm - 21% O2
• Ambient temperature: 0–45° Celsius
• Measuring accuracy: +/- 0.3 mV (EMK Sensor)
• Heat-up time: 3-5 min
• Response time: approx. 2 seconds for changes
• Dimensions (L x W x H): 180mm x 210mm x 85mm without handle
• Main voltage Multirange: 100-240V AC
• Heating cycle load: approx. 40VA
• Standard load: approx. 20VA
• Weight: 2.1 kg
• Input voltage: 24V (via the Oxy EVO)
• Calibrated measuring range: 0 – 2500 Pa



Scope of supply:

• Oxygen analyser
• Mains cable
• Hose set, 3 m, including filter and probe
• Calibration certificate
• Plastic case
• Integrated purge pressure analyser
• Measuring hose, 3 m
• 6 mm T-piece
• Calibration certificate (pressure)

For connecting to TIGTRONIC ORBITAL and EVO, 3 m

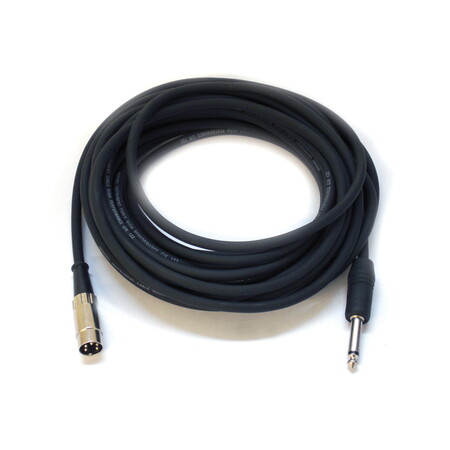

For OXY 2 / EVO for connecting to TIGTRONIC BASIC 2 – 4 controllers

For OXY EVO for connecting to TIGTRONIC ORBITAL and EVO controllers

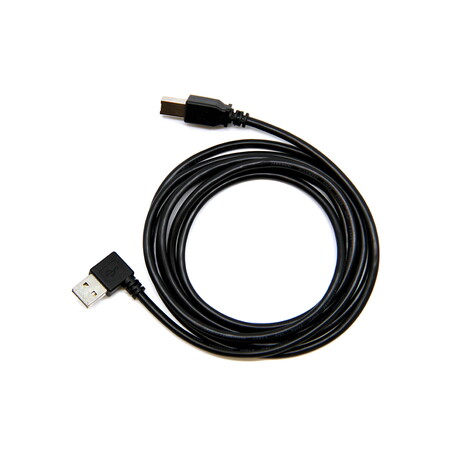

For OXY EVO for connecting to EVO and PC controllers, 2 m

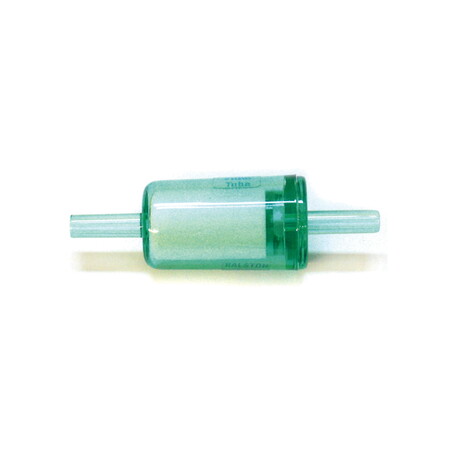

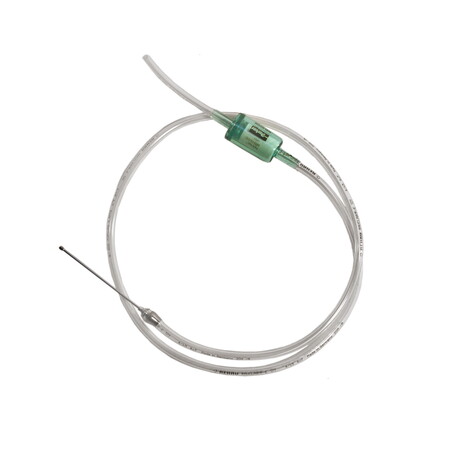

For OXY 2, 3, EVO, 3 m, with particle filter and stainless steel probe
