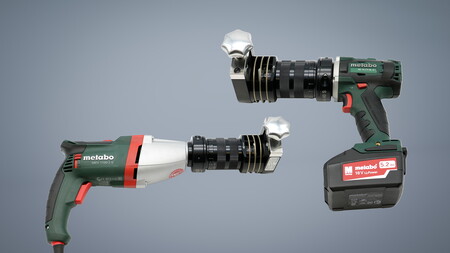

Compact, powerful, and flexible – for use with battery or mains power
The Planfix 40 S is a powerful and handy facing device for cordless or mains-powered mobile or stationary use. It has a large inspection window, an indexable insert holder, indexable inserts that can be used on two sides and a feed with 0.1 mm scale graduation. Existing Orbitec planar steels can be used without an indexable insert holder as an alternative. The new indexable inserts have a long service life and can be used to quickly and reliably machine unalloyed, low-alloyed and high-alloyed steels with high precision.
Compact, powerful, and flexible – for use with battery or mains power
The Planfix 40 S is a powerful and handy facing device for cordless or mains-powered mobile or stationary use. It has a large inspection window, an indexable insert holder, indexable inserts that can be used on two sides and a feed with 0.1 mm scale graduation. Existing Orbitec planar steels can be used without an indexable insert holder as an alternative. The new indexable inserts have a long service life and can be used to quickly and reliably machine unalloyed, low-alloyed and high-alloyed steels with high precision.
Planfix 40 S

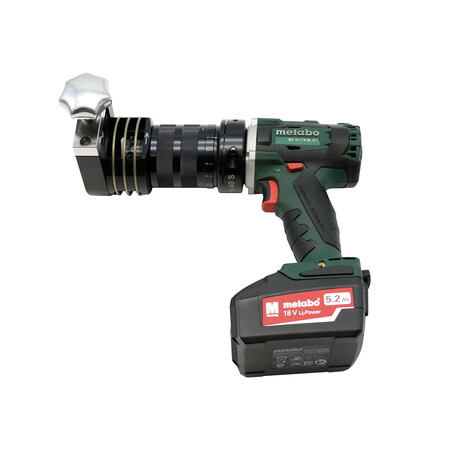

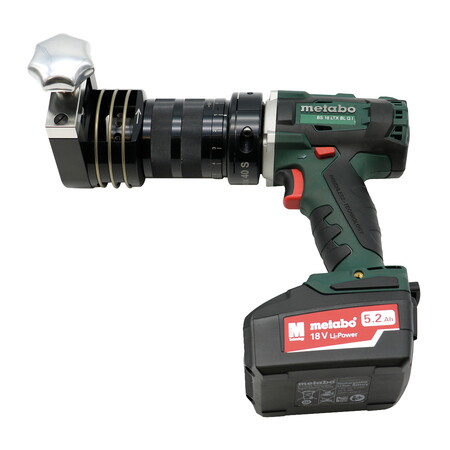

Planfix 40 S 230 V battery
Scope of application:
- Tube size range: OD 3 – 40 mm / 0.386" – 1.575"
- Max. wall thickness: max. 4.0 mm
- Dimension: 275x250x135mm
- Weight: 3.4 kg
- Drive: Metabo
- Idle speed: 0-500/0-1850/min
- Li-ion battery voltage: 18 V / 5.2 Ah
- Charger: ASC 30–36 V Air-cooled
- Mains Voltage: 230 – 240 V
- Input: 50 – 60 Hz
- Max. current: 3 A

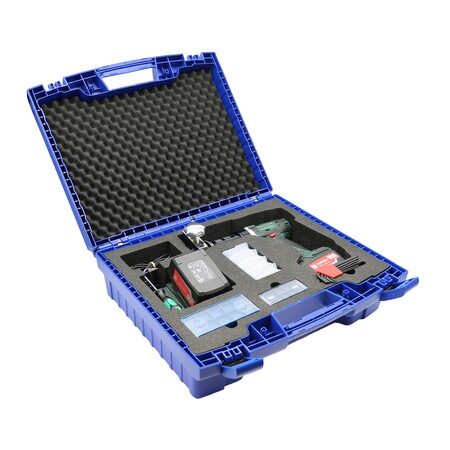

Package includes:
- Clamping attachment
- Drive
- Two Li-ion batteries
- Battery charging station
- Tool kit
- Transport case
Item number: 1.3.41071
Planfix 40 S 120 V battery
Scope of application:
- Tube size range: OD 3 – 40 mm / 0.386" – 1.575"
- Max. wall thickness: max. 4.0 mm
- Dimension: 275x250x135mm
- Weight: 3.4 kg
- Drive: Metabo
- Idle speed: 0-500/0-1850/min
- Li-ion battery voltage: 18 V / 5.2 Ah
- Charger: ASC 30–36 V Air-cooled
- Mains Voltage: 115 V
- Input: 60 Hz
- Max. current: 3 A
Package includes:
- Clamping attachment
- Drive
- Two Li-ion batteries
- Battery charging station
- Tool kit
- Transport case
Item number: 1.3.41072

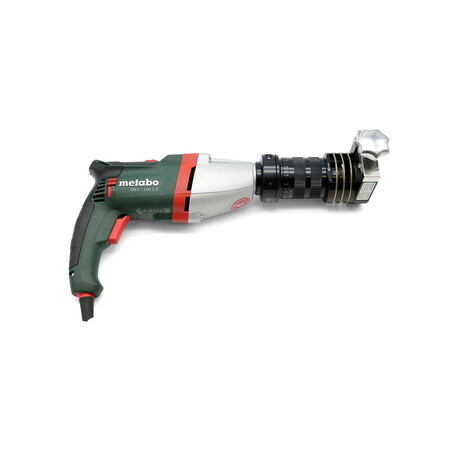

Planfix 40 S 230 V mains
Scope of application:
- Tube size range: OD 3 – 40 mm / 0.386" – 1.575"
- Max. wall thickness: max. 4.0 mm
- Dimension: 415x200x135mm
- Weight: 4,0 kg
- Drive: Metabo
- Idle speed: 0-1100/0-3100/min
- Mains Voltage: 230-240 V
- Input: 50-60 Hz
- Max. current: 5,1A
Package includes:
- Clamping attachment
- Drive
- Tool kit
- Transport case
Item number: 1.3.41073
Planfix 40 S 120 V mains
Scope of application:
- Tube size range: OD 3 – 40 mm / 0.386" – 1.575"
- Max. wall thickness: max. 4.0 mm
- Dimension: 415x200x135mm
- Weight: 4,0 kg
- Drive: Metabo
- Idle speed: 0-1100/0-3100/min
- Mains Voltage: 110 - 120 V
- Input: 50-60 Hz
- Max. current: 10,5A
Package includes:
- Clamping attachment
- Drive
- Tool kit
- Transport case
Item number: 1.3.41074

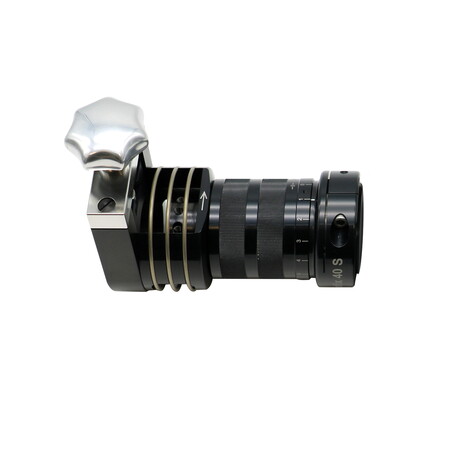

Planfix 40 S (without drive)
Scope of application:
- Tube size range: OD 3 – 40 mm / 0.386" – 1.575"
- Max. wall thickness: max. 4.0 mm
- Dimension: 155x75x135 mm
- Weight: 1,45 kg
Package includes:
- Clamping attachment
Item number: 1.3.4107
Accessories and extensions
PLANFIX 40 S STAND
Item number: 1.3.41000
Planfix 40 collets
1 set per tube outer diameter = 2 half-shells. The collets of the OSK 38 welding head can also be used.
Item number: 1.3.4102+Ø
Indexable insert (TiC coated)
Offers a long service life and can be used to quickly and reliably machine unalloyed, low-alloyed and high-alloyed steels with high precision.
Item number: 1.2.4115
