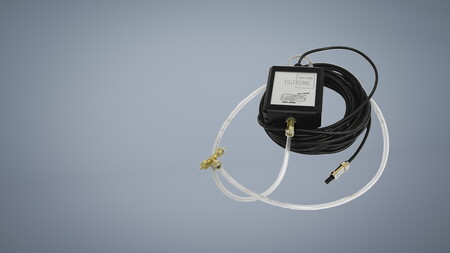

The PPA 2500 purge pressure analyser is the proven standard unit from Orbitec for measuring and documenting the purge gas pressure inside the tube.
PPA 2500 purge pressure analyser
The PPA 2500 purge pressure analyser can measure the purge gas pressure inside the tube before and during welding. Perfectly flat, repeatable root formations can be achieved by regulating the internal pressure – especially for smaller tube diameters. Documentation can be obtained by connecting to the TIGTRONIC ORBITAL and EVO controllers.
Purge Pressure Analyser

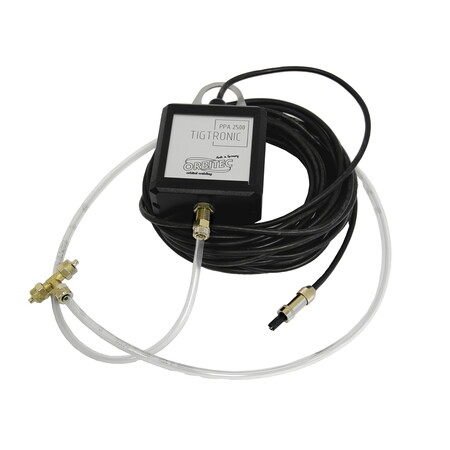

PPA 2500 purge pressure analyser
Technical Data:
- Input voltage: 24 V (using the controller)
- Calibrated measuring range: 0 – 2.500 Pa
- Weight: 0,6 kg
- Dimensions (L x B x H): 41 mm x 80 mm x 160 mm
Package includes:
- Purge pressure analyser
- Measuring hose
- 6 mm T-piece
- Calibration certificate
- Transport case
Item number: 1.2.5003
